Leica M4 Olive “Bundeswehr”. One of the rarest military Leica cameras ever produced
Among military Leica cameras produced during the 20th century, the Leica M4 Olive “Bundeswehr” stands as one of the most elusive and desirable models ever created.
Produced in 1970, this special variant of the Leica M4 was manufactured in an extremely limited quantity. With only 31 units produced, from serial number 1266101 to 1266131, it is the rarest type among the olive-finished Bundeswehr Leica cameras.
Originally produced for the German armed forces (Bundeswehr), these cameras differ significantly from standard civilian chrome or black Leica M4 models making them one of the most sought-after Leica rarities in the world of camera collecting.
Today, surviving examples are regarded not only as photographic instruments but also as historical military artifacts and important pieces of Leica’s history.
© Wetzlar Camera Auctions
Military Origins: Leica Cameras for the Bundeswehr
During the Cold War period, the German military required robust photographic equipment for documentation and reconnaissance tasks. Leica cameras were already well known for their mechanical reliability, compact size, and optical precision, making them ideal tools for field and studio use.
For certain military contracts, Leica supplied cameras with special finishes and markings to distinguish them from civilian models. The olive-green paint seen on these Bundeswehr cameras was designed to reduce reflections and provide a more discreet appearance in operational environments.

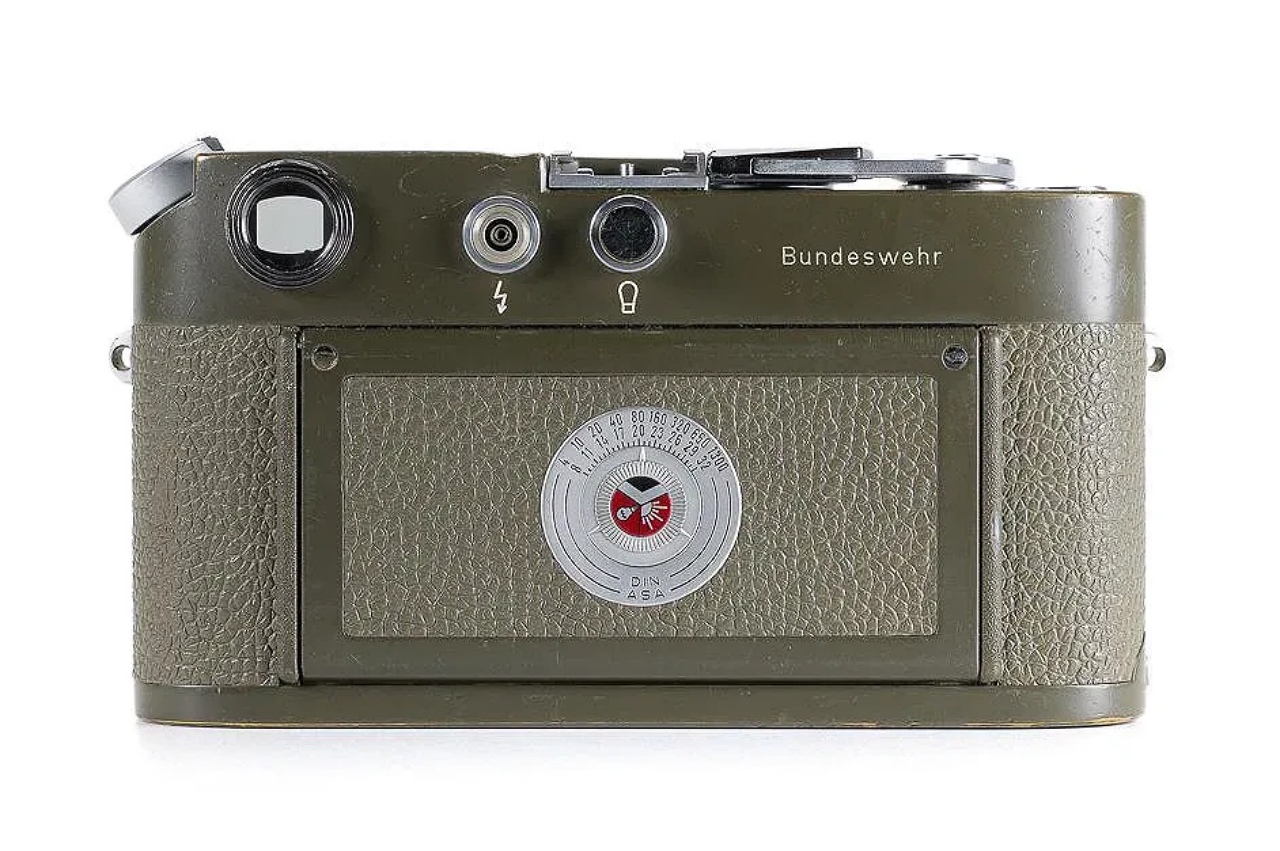

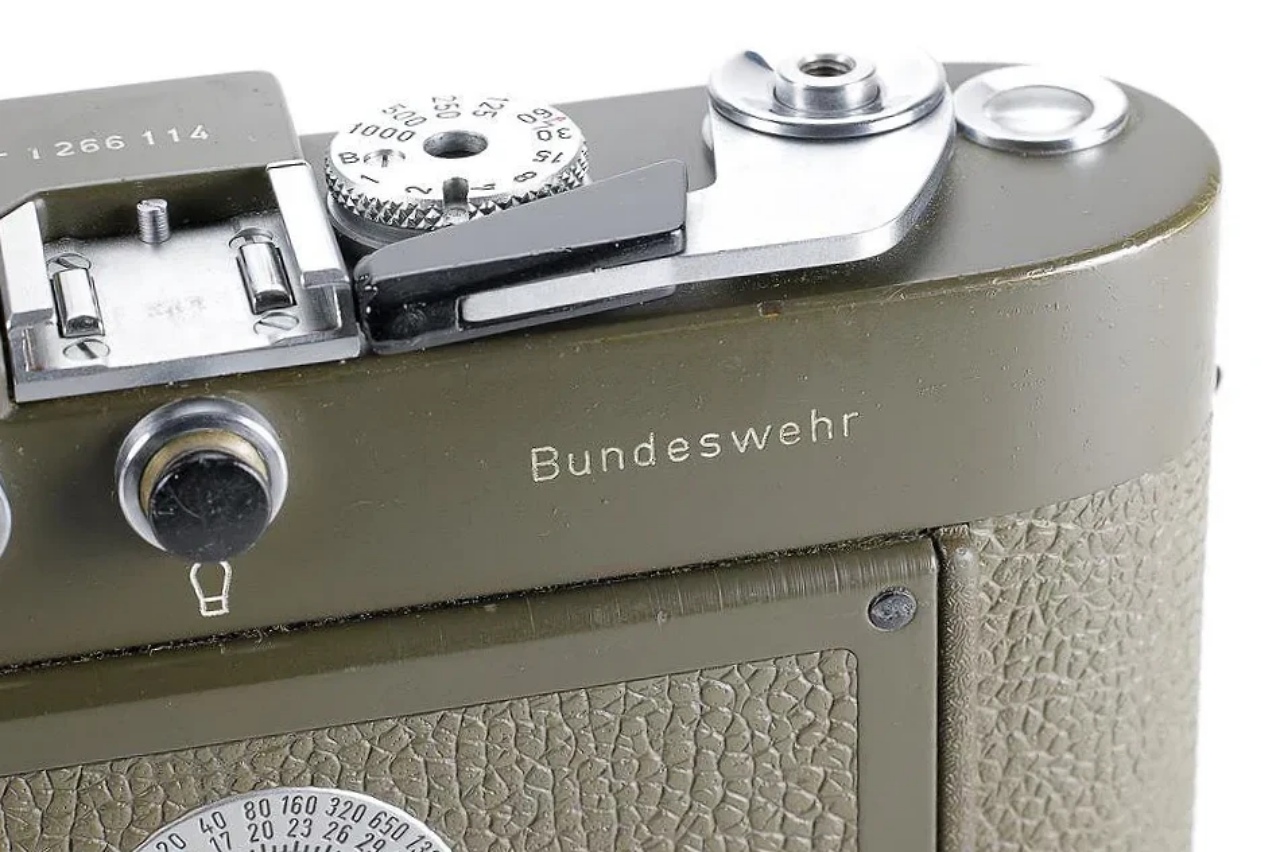

A defining feature of these cameras is the engraving “Bundeswehr” (not “Bundeseigentum” or “Bundeswehreigentum” as on the early or respectively late Leica M3 olive) on the rear side of the top plate, clearly indicating their military origin.
© Wetzlar Camera Auctions
Because they were produced strictly for institutional use and in very small quantities, these cameras were never distributed on the civilian market. As a result, authentic examples appear extremely rarely today.
Technical Characteristics of the Leica M4
The Leica M4 represents one of the most refined generations of the classic mechanical Leica M rangefinder system. Introduced in 1967, it continued Leica’s long tradition of precision mechanical cameras designed for professional photography.
The M4 combined decades of Leica engineering with improved usability, including a faster film loading system and a more ergonomic rewind mechanism.
Key technical specifications
Camera type: 35 mm rangefinder camera
Lens mount: Leica M bayonet mount
Viewfinder magnification: 0.72×
Frame lines: 35 mm, 50 mm, 90 mm, and 135 mm
Shutter type: mechanical horizontal cloth focal-plane shutter
Shutter speeds: 1 second – 1/1000 second + Bulb
Flash synchronization: 1/50 second
Film transport: quick-load system introduced with the M4
Body construction: brass top and bottom plates with fully mechanical operation
Like all classic Leica M cameras of the era, the M4 is entirely mechanical, allowing it to operate without batteries. This reliability made it particularly suitable for demanding environments, including military use.
© Wetzlar Camera Auctions
The Bundeswehr Elmar 50 mm f/2.8

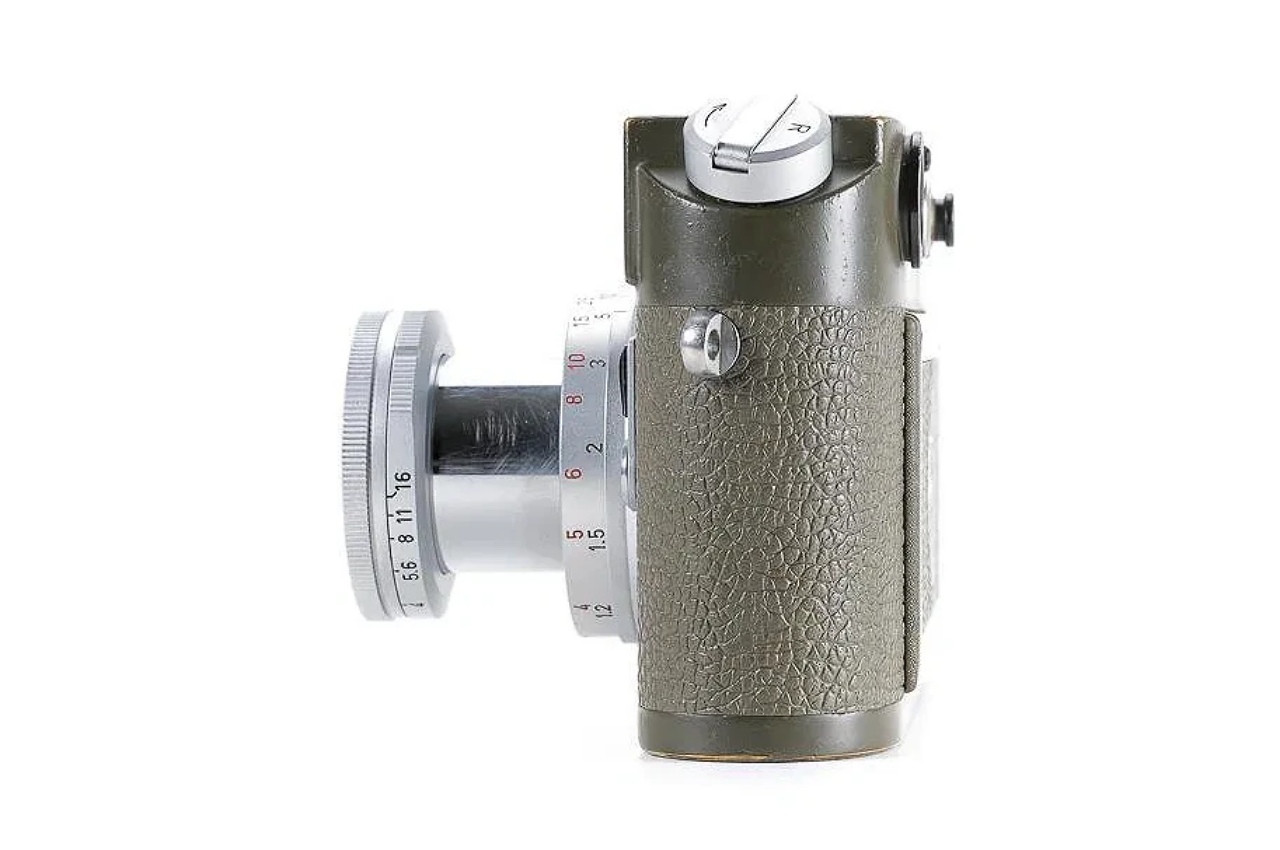

The Leica M4 Bundeswehr cameras were supplied with a dedicated Elmar 50 mm f/2.8 lens. This compact standard lens was known for its robust construction and reliable optical performance.

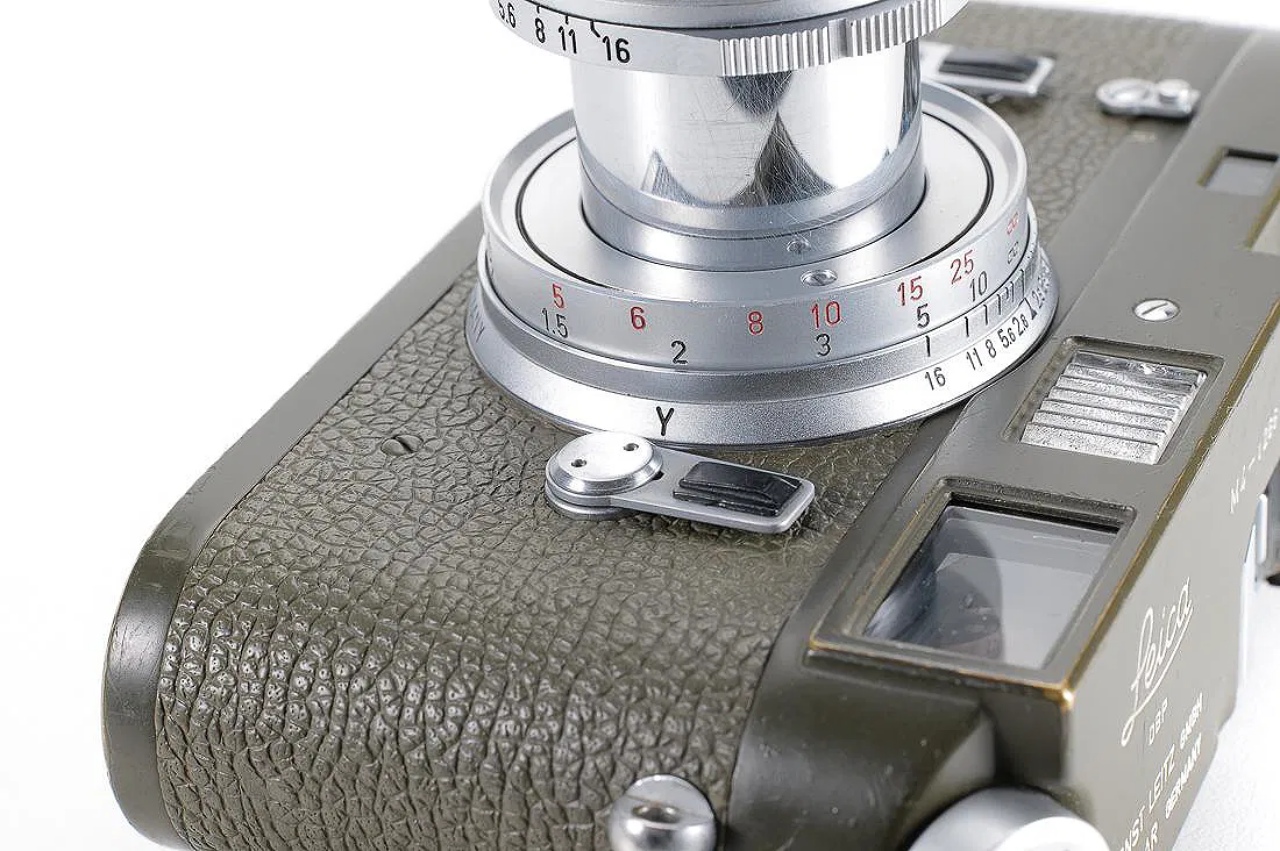

The Bundeswehr-issued version can be identified by the “Y” engraving on the focusing mount, a marking associated with military equipment supplied for the German armed forces.
Lens specifications
Lens type: Leitz Elmar
Focal length: 50 mm
Maximum aperture: f/2.8
Mount: Leica M
© Wetzlar Camera Auctions
Special marking: “Y” engraving indicating Bundeswehr specification
The Elmar design had been part of Leica’s optical heritage for decades and remained valued for its compact size, sharp rendering, and mechanical durability.
Collectibility and Rarity
Within the field of Leica collecting, military cameras represent a particularly fascinating category. They combine the technical excellence of Leica engineering with the historical context of government and institutional use.
The Leica M4 Olive Bundeswehr stands at the very top of this niche for several reasons:
Extremely limited production (31 cameras)
Official Bundeswehr military provenance
Distinctive olive-green military paint
Unique “Bundeswehr” engraving
Matching dedicated Elmar lens
Exceptional rarity on the collector market
Because of these characteristics, the camera is widely considered one of the most important Leica military models ever produced.
2021 Wetzlar Camera Auction Result

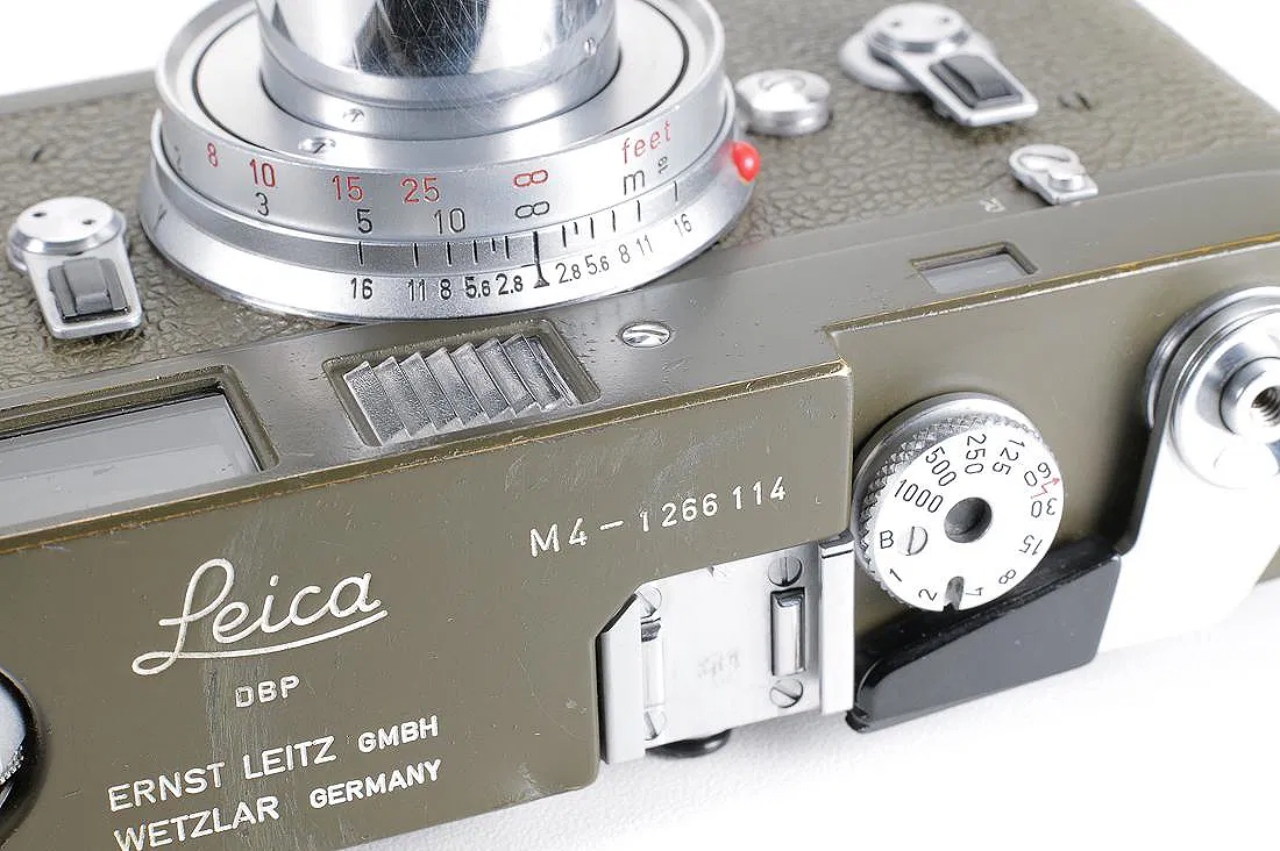

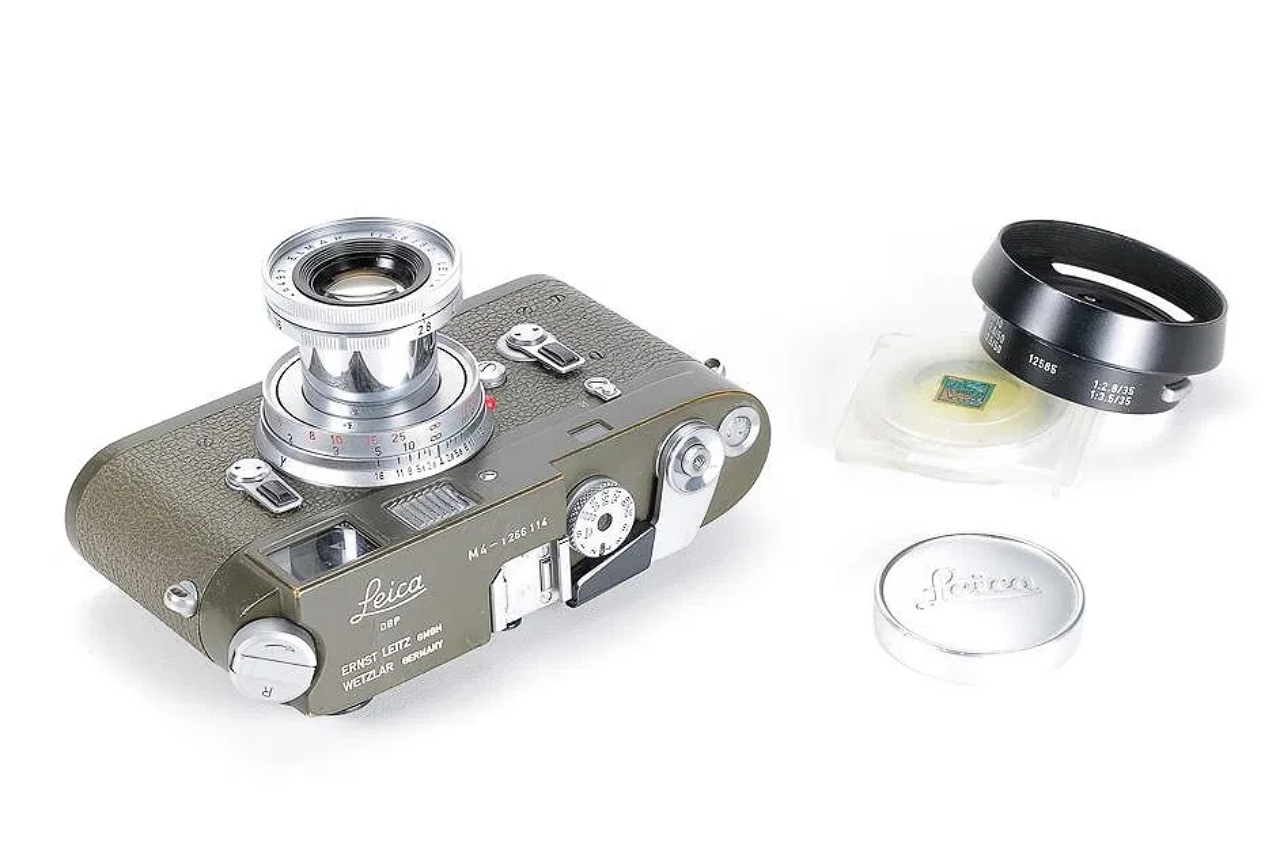

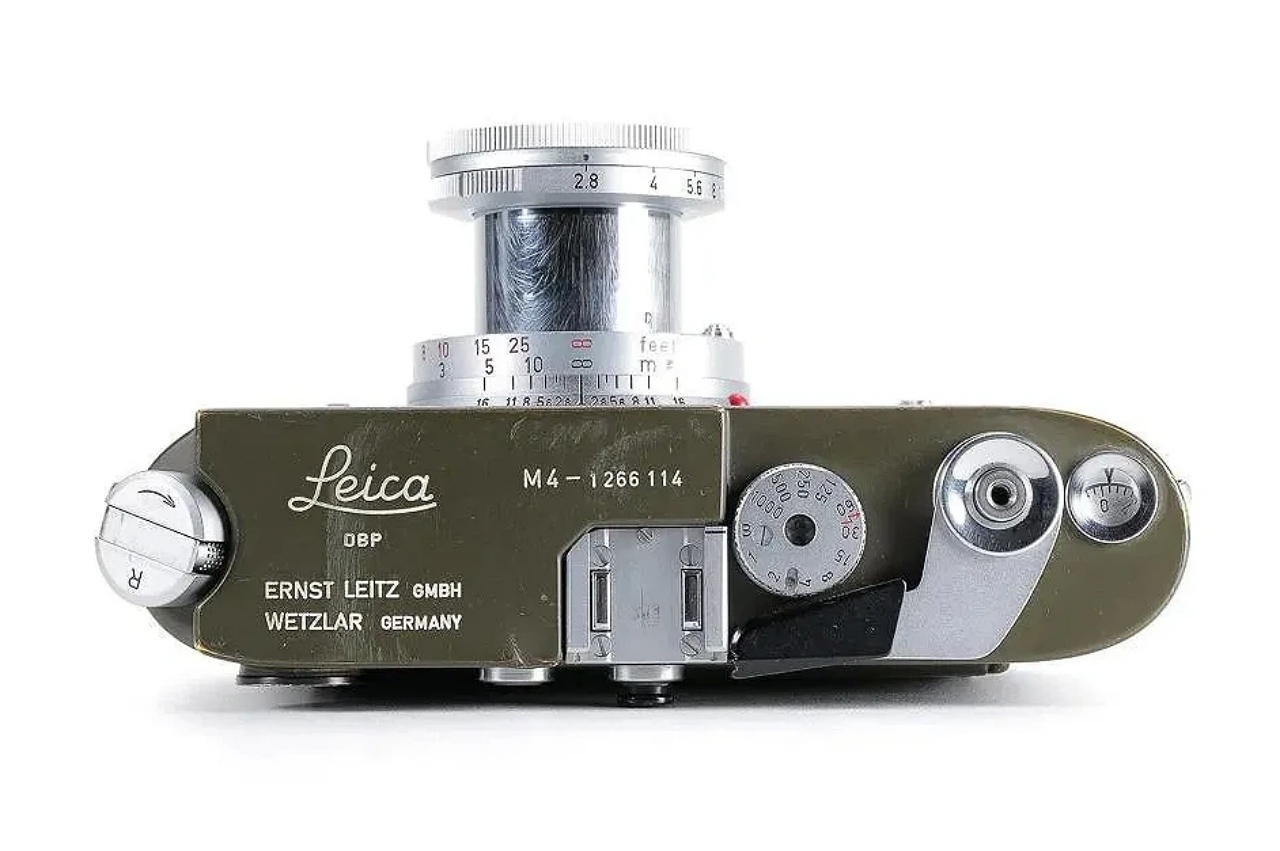

An exceptional example of the Leica M4 Olive “Bundeswehr” (Serial Number 1266114, produced in 1970) was presented at the Wetzlar Camera Auction in 2021. The camera was offered together with the original Bundeswehr Elmar 50 mm f/2.8 (No. 2326497) with “Y” engraving. This example was described as being in very nice, slightly used condition, with minor cosmetic signs of use, particles visible in the viewfinder, and a small bump on the top plate. Importantly, the camera appeared never to have been opened, as the original Leitz Wetzlar assembly seal remained intact.
In 2021 the Leica M4 Olive “Bundeswehr” (1970) was sold for € 450,000.
© Wetzlar Camera Auctions
A Landmark Piece of Leica History
More than fifty years after its production, the Leica M4 Olive “Bundeswehr” remains one of the most extraordinary Leica cameras ever created.
Its combination of military history, extremely small production numbers, and classic Leica engineering has secured its place among the most coveted collectibles in the world of photography.
For collectors of rare Leica equipment, opportunities to acquire such cameras are exceptionally rare.
